方便列印:: Cast Iron Fitting(2) :: 生鐵附件(2) ::
click to enlarge
45度曲
物料:
水力測試:
配NP16佛冷
click to enlarge
90度曲
物料:
水力測試:
配NP16佛冷
click to enlarge
物料:
水力測試:
配NP16佛冷
click to enlarge
直刁士 (CH420) / 斜刁士 (CH421)
物料:
水力測試:
配NP16佛冷
| 方便列印 |
|||||
:: Cast Iron Fitting(2) :: 生鐵附件(2) :: | |||||

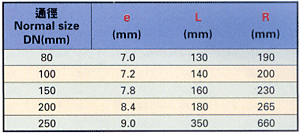

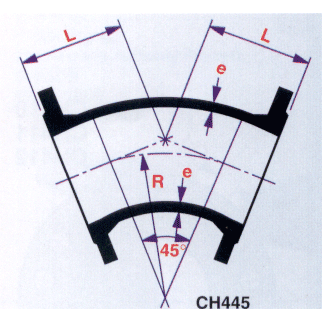

| PART: CH445 | |||||
click to enlarge |
| Double
- Flanged 45 Degree Bend 45度曲 | |||
| Material
物料: | BS1452 | ||||
| Hydraulic Test 水力測試: | 17.5 bar | ||||
| NP16
is the preferred flange 配NP16佛冷 | |||||
| |||||

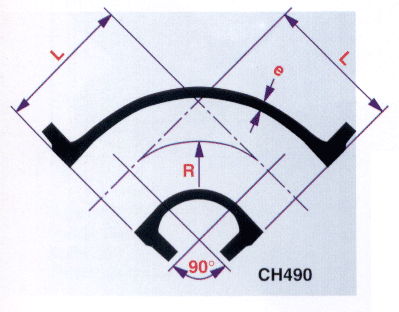

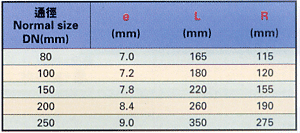

| PART: CH490 | |||||
click to enlarge |
| Double
- Flanged 90 Degree Bend 90度曲 | |||
| Material
物料: | BS1452 | ||||
| Hydraulic Test 水力測試: | 17.5 bar | ||||
| NP16
is the preferred flange 配NP16佛冷 | |||||
| |||||

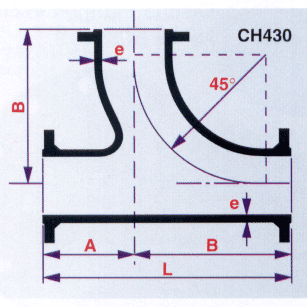

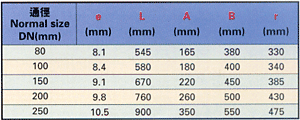

| PART: CH430 | |||||
click to enlarge |
| All
- Flanged Radial Tees 順水叉 | |||
| Material
物料: | BS1452 | ||||
| Hydraulic
Test 水力測試: | 17.5 bar | ||||
| NP16
is the preferred flange 配NP16佛冷 | |||||
| |||||

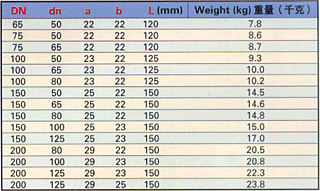

| PART: CH420/421 | |||||
click to enlarge |
| Double
- Flanged Tapers (Concentrie Reducer) / Double - Flanged Tapers (Escentric Reducer)
直刁士 (CH420) / 斜刁士 (CH421) | |||
| Material
物料: | BS1452 | ||||
| Hydraulic
Test 水力測試: | 17.5 bar | ||||
| NP16
is the preferred flange 配NP16佛冷 | |||||
| |||||
